What is a concentration field?

Spatial transcriptomics gives us discrete detections: a list of (x, y) coordinates where individual mRNA molecules were found. But many biological processes operate through continuous gradients — ligand concentrations, cytokine fields, metabolite distributions. TissueField bridges that gap.

Given a set of transcript coordinates and a tissue mask polygon, estimate_concentration_field() computes the steady-state concentration that those transcripts would produce as diffusing point sources inside the tissue:

D∇2C(𝐱)−λC(𝐱)+s(𝐱)=0D \nabla^2 C(\mathbf{x}) - \lambda C(\mathbf{x}) + s(\mathbf{x}) = 0

The output is a dense numeric matrix — a spatial field — defined over the tissue with NA outside it.

The single most important parameter is the diffusion length:

L=D/λL = \sqrt{D / \lambda}

LL is roughly the radius of influence of one transcript. Set it to match the biological scale of interest.

A first example

We start by creating a simple circular tissue and placing synthetic transcripts inside it.

library(TissueField)
library(sf)
library(ggplot2)

set.seed(2024)

# Circular mask (radius = 10, centre = origin)
theta     <- seq(0, 2 * pi, length.out = 201)
circle_xy <- cbind(10 * cos(theta), 10 * sin(theta))
circle_xy[201, ] <- circle_xy[1, ]   # close exactly (avoid floating point gap)
mask      <- st_sfc(st_polygon(list(circle_xy)))

# 200 transcripts: focal cluster at (-4, 3) and uniform background
tc_cluster <- data.frame(x = rnorm(120, -4, 1.5), y = rnorm(120, 3, 1.2))
tc_bg      <- data.frame(x = runif(80, -9, 9),    y = runif(80, -9, 9))
# keep only those inside the mask
inside_fn  <- function(d) {
  as.logical(st_within(st_as_sf(d, coords = c("x","y")), mask, sparse = FALSE)[,1])
}
tc <- rbind(tc_cluster[inside_fn(tc_cluster), ], tc_bg[inside_fn(tc_bg), ])

Compute the concentration field

Call estimate_concentration_field() with a moderate diffusion length. Here we set L = 3 directly using the diffusion_length argument, which is the simplest way to control spatial scale.

res <- estimate_concentration_field(
  mask              = mask,
  transcript_coords = tc,
  diffusion_length  = 3,      # L = 3 spatial units
  D                 = 1,      # sets amplitude (shape depends only on L)
  method            = "fd",   # finite-difference, recommended
  grid_resolution   = 128L,
  verbose           = TRUE
)
## ============================================================
##   estimate_concentration_field
## ============================================================
##   Method: fd | D: 1 | lambda: 0.1 | L: 3 | N: 128 x 128
##   BC: dirichlet | solver: direct
## ------------------------------------------------------------
##   Transcripts: 191 used (0 external excluded)
##   Rasterizing 128x128 grid...
##   Inside-mask cells: 11452 (69.9%)
##   Sparse system: 11452x11452, 56780 nnz
##   Solve: 0.07s | Total: 0.50s | Range: [0.03457, 20.46]
## ============================================================

Inspect the return value

names(res)
## [1] "field"       "x"           "y"           "hx"          "hy"
## [6] "mask"        "sources"     "params"      "diagnostics"
dim(res$field)        # N x N matrix
## [1] 128 128
res$params$diffusion_length
## [1] 3
res$diagnostics
## $n_transcripts_total
## [1] 191
##
## $n_transcripts_used
## [1] 191
##
## $n_transcripts_external
## [1] 0
##
## $n_cells_inside_mask
## [1] 11452
##
## $elapsed_total_s
## elapsed
##   0.501
##
## $elapsed_solve_s
## elapsed
##   0.075

Visualise with field_to_df() and ggplot2

field_to_df() unpacks the matrix into a tidy data frame:

df <- field_to_df(res)  # inside_only = TRUE by default
head(df)
##              x         y      field inside source
## 567 -1.5734375 -9.854688 0.05388863   TRUE      0
## 568 -1.4078125 -9.854688 0.07462319   TRUE      0
## 569 -1.2421875 -9.854688 0.08377106   TRUE      0
## 570 -1.0765625 -9.854688 0.08781222   TRUE      0
## 571 -0.9109375 -9.854688 0.08905466   TRUE      0
## 572 -0.7453125 -9.854688 0.08856328   TRUE      0

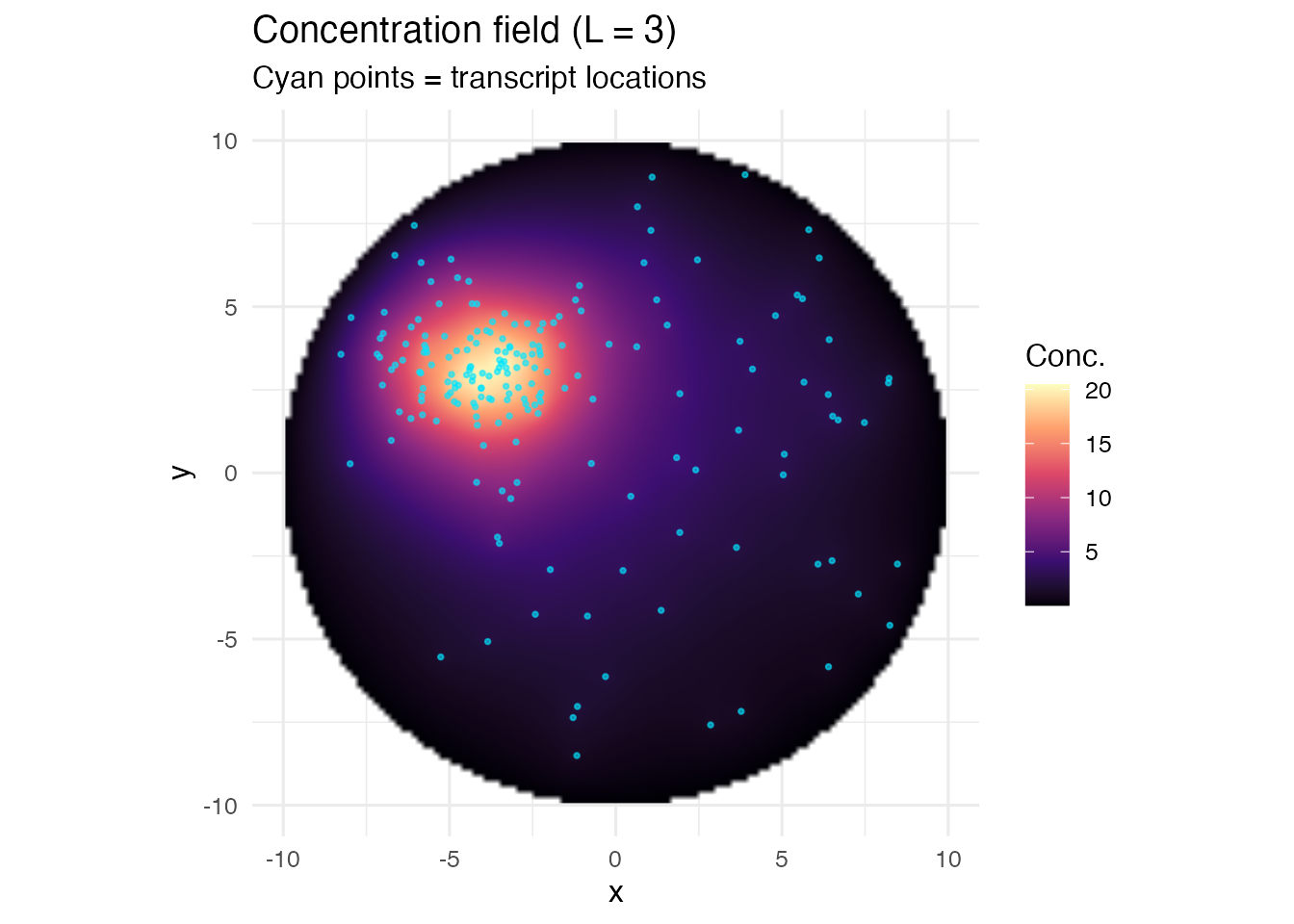

ggplot(df, aes(x = x, y = y, fill = field)) +
  geom_raster(interpolate = TRUE) +
  geom_point(data = tc, aes(x = x, y = y),
             inherit.aes = FALSE, color = "#00e5ff",
             size = 0.6, alpha = 0.6) +
  scale_fill_viridis_c(option = "magma", name = "Conc.") +
  coord_equal() + theme_minimal(base_size = 12) +
  labs(title = "Concentration field (L = 3)",
       subtitle = "Cyan points = transcript locations")

Or use the built-in plot function

plot_concentration_field() wraps the same ggplot2 code with sensible defaults:

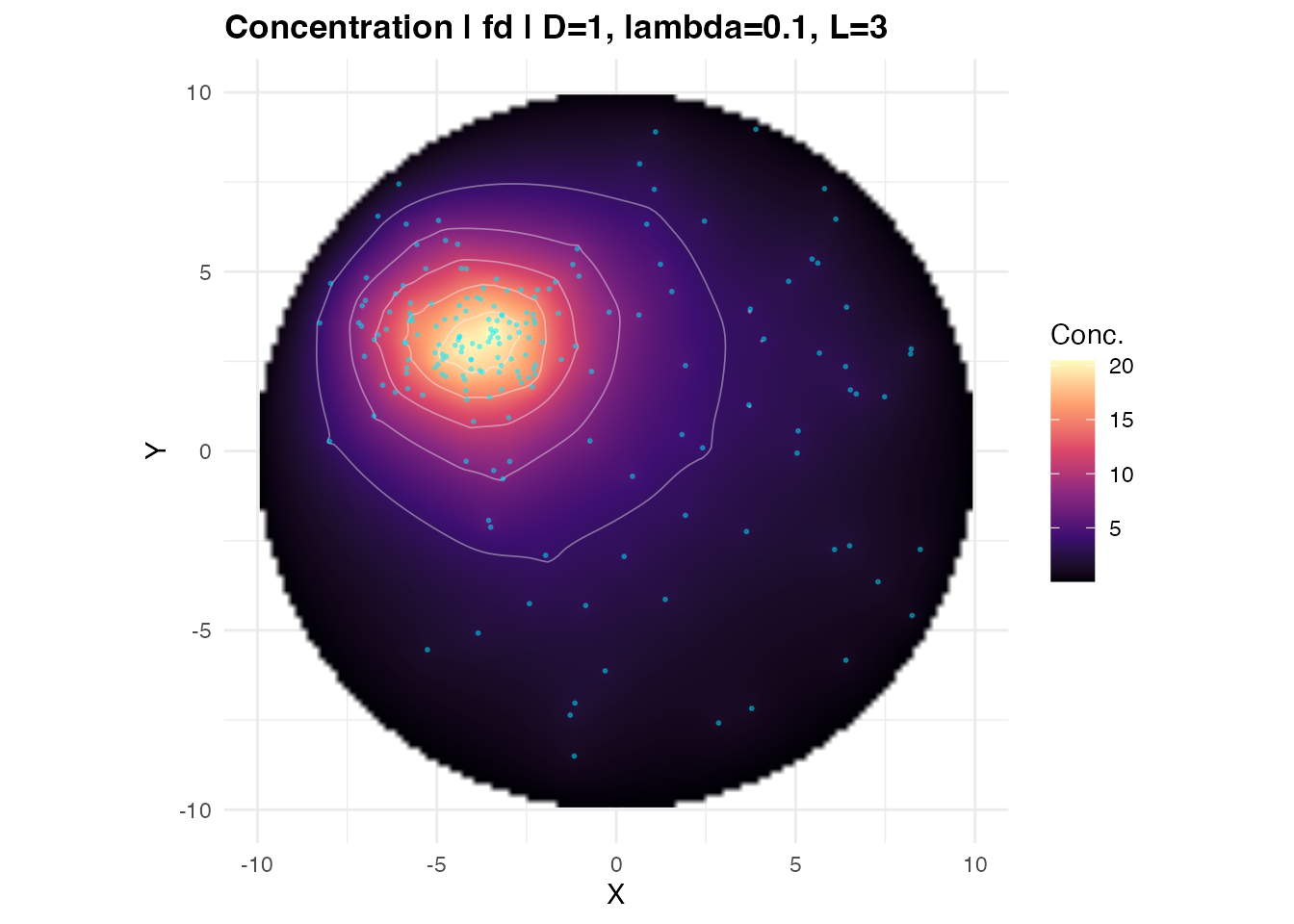

plot_concentration_field(res, transcript_coords = tc,
                         show_contours = TRUE, n_contours = 6)

Understanding diffusion length

The field shape is entirely determined by LL. Use sweep_diffusion_length() to compare several values at once:

library(patchwork)

L_vals <- c(0.8, 2, 5, 12)
plots  <- lapply(L_vals, function(Lv) {
  res_l <- estimate_concentration_field(
    mask, tc, diffusion_length = Lv, D = 1,
    method = "fd", grid_resolution = 128L, verbose = FALSE
  )
  df_l  <- field_to_df(res_l)
  # normalise each panel independently for visual comparison
  rng   <- range(df_l$field, na.rm = TRUE)
  df_l$field_norm <- (df_l$field - rng[1]) / diff(rng)
  ggplot(df_l, aes(x = x, y = y, fill = field_norm)) +
    geom_raster(interpolate = TRUE) +
    scale_fill_viridis_c(option = "magma", limits = c(0, 1),
                          name = "Norm.\nConc.", na.value = "transparent") +
    coord_equal() + theme_minimal(base_size = 9) +
    labs(title = sprintf("L = %g", Lv), x = NULL, y = NULL)
})

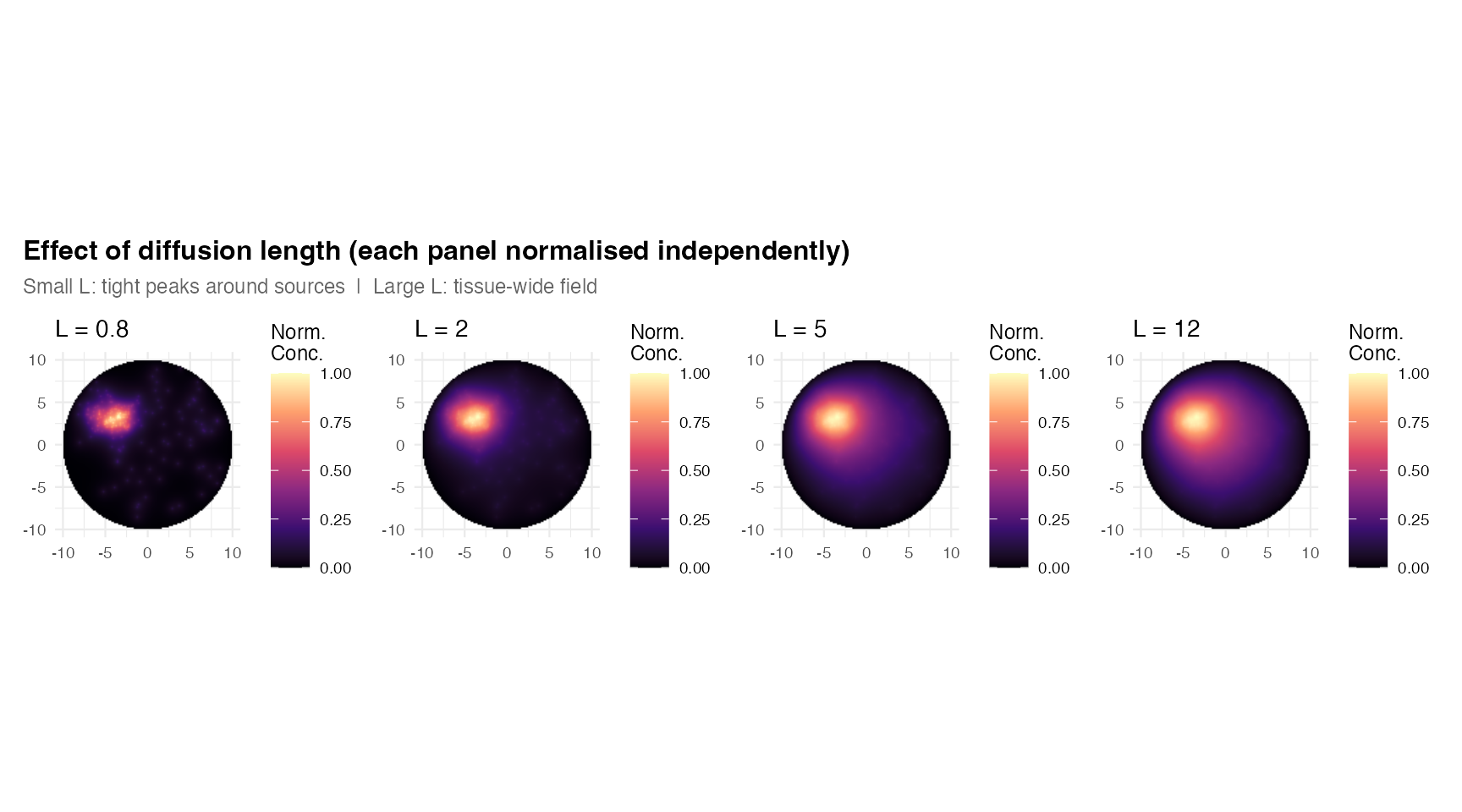

wrap_plots(plots, nrow = 1) +
  plot_annotation(
    title    = "Effect of diffusion length (each panel normalised independently)",
    subtitle = "Small L: tight peaks around sources  |  Large L: tissue-wide field",
    theme    = theme(plot.title    = element_text(face = "bold", size = 12),
                     plot.subtitle = element_text(size = 9, color = "grey40"))
  )

Practical guidance:

  • Set LL to 10–20% of the typical inter-cluster distance to get fields that peak at sources and decay between them.
  • Larger LL produces smoother, more “territorial” fields where influence extends across the whole tissue.
  • DD only affects the amplitude (C∝1/DC \propto 1/D), not the spatial pattern. See vignette("parameter-tuning") for details.
