Plot a concentration field — plot_concentration

Produces a ggplot2 raster visualisation of a field returned by estimate_concentration_field(). Optionally overlays transcript point locations and iso-concentration contour lines.

Usage

plot_concentration_field(
  result,
  transcript_coords = NULL,
  show_sources = TRUE,
  show_contours = FALSE,
  n_contours = 8L,
  palette = "magma",
  interpolate = TRUE,
  log_scale = FALSE,
  pt_size = 0.4,
  pt_alpha = 0.4,
  pt_color = "#00e5ff",
  title = NULL
)

Arguments

result: A list returned by estimate_concentration_field().
transcript_coords: Optional data.frame with columns x and y to overlay as points.
show_sources: Logical. If TRUE and transcript_coords is supplied, overlay points. Default TRUE.
show_contours: Logical. Overlay iso-concentration contours. Default FALSE.
n_contours: Integer. Number of contour levels. Default 8L.
palette: Viridis palette name ("magma", "viridis", etc.). Default "magma".
interpolate: Logical. Use bilinear interpolation in geom_raster. Default TRUE.
log_scale: Logical. Plot log1p(field) instead of raw field. Default FALSE.
pt_size: Point size for transcript overlay. Default 0.4.
pt_alpha: Point transparency. Default 0.4.
pt_color: Point colour. Default "#00e5ff".
title: Optional plot title; auto-generated from params if NULL.

Value

A ggplot object.

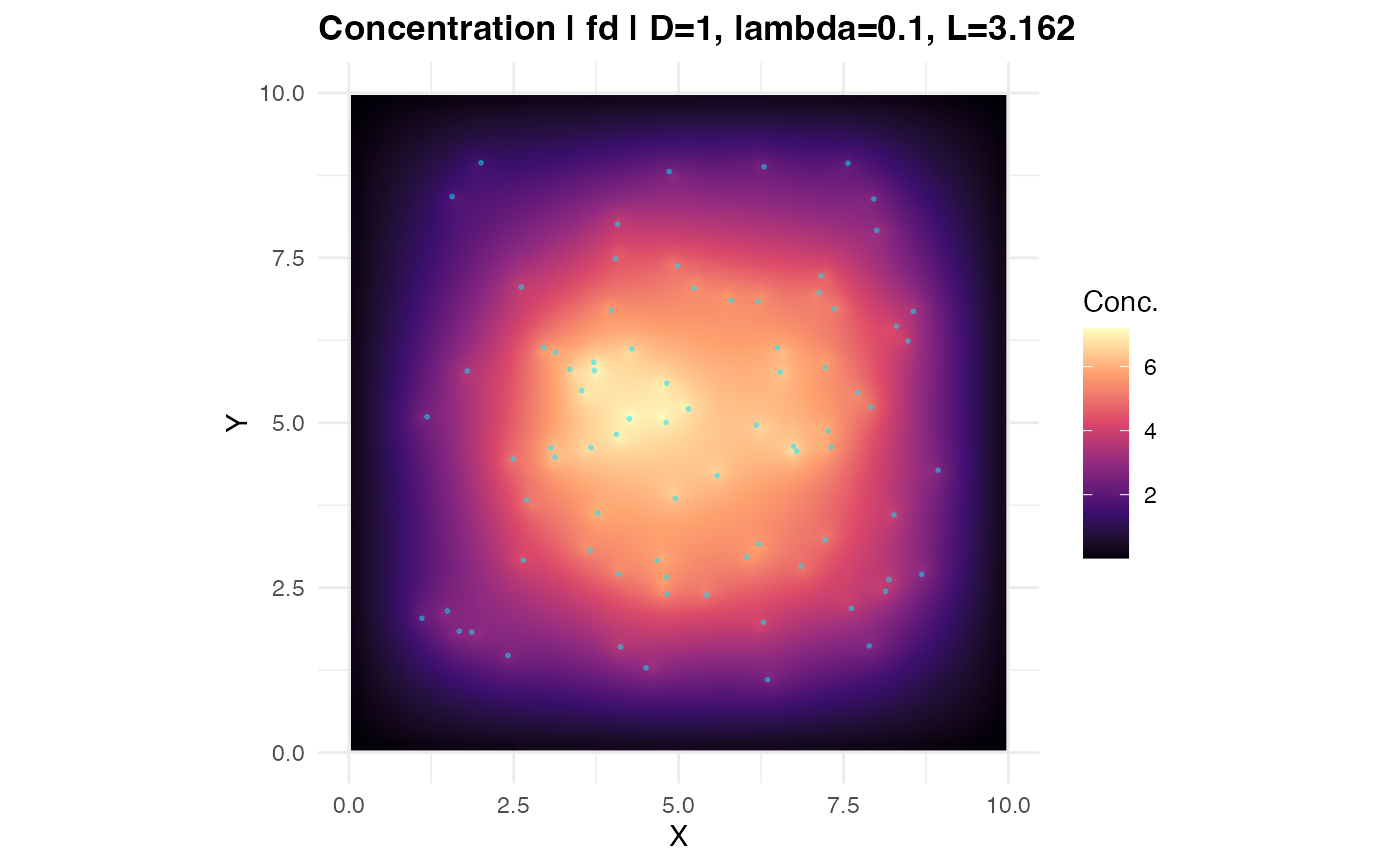

Examples

library(sf)
set.seed(1)
sq   <- st_polygon(list(cbind(c(0,10,10,0,0), c(0,0,10,10,0))))
mask <- st_sfc(sq)
tc   <- data.frame(x = runif(80, 1, 9), y = runif(80, 1, 9))
res  <- estimate_concentration_field(mask, tc, grid_resolution = 64L,
                                     verbose = FALSE)
if (requireNamespace("ggplot2", quietly = TRUE))
  plot_concentration_field(res, tc)
